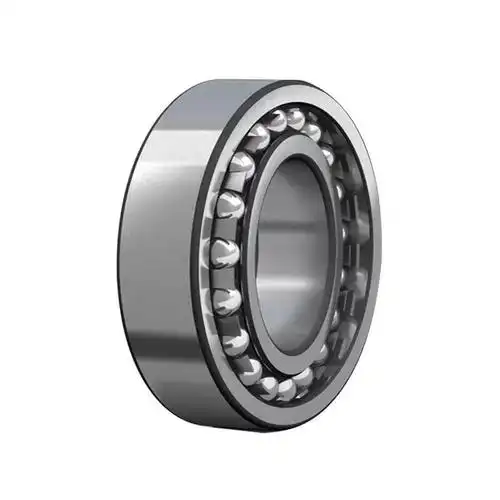

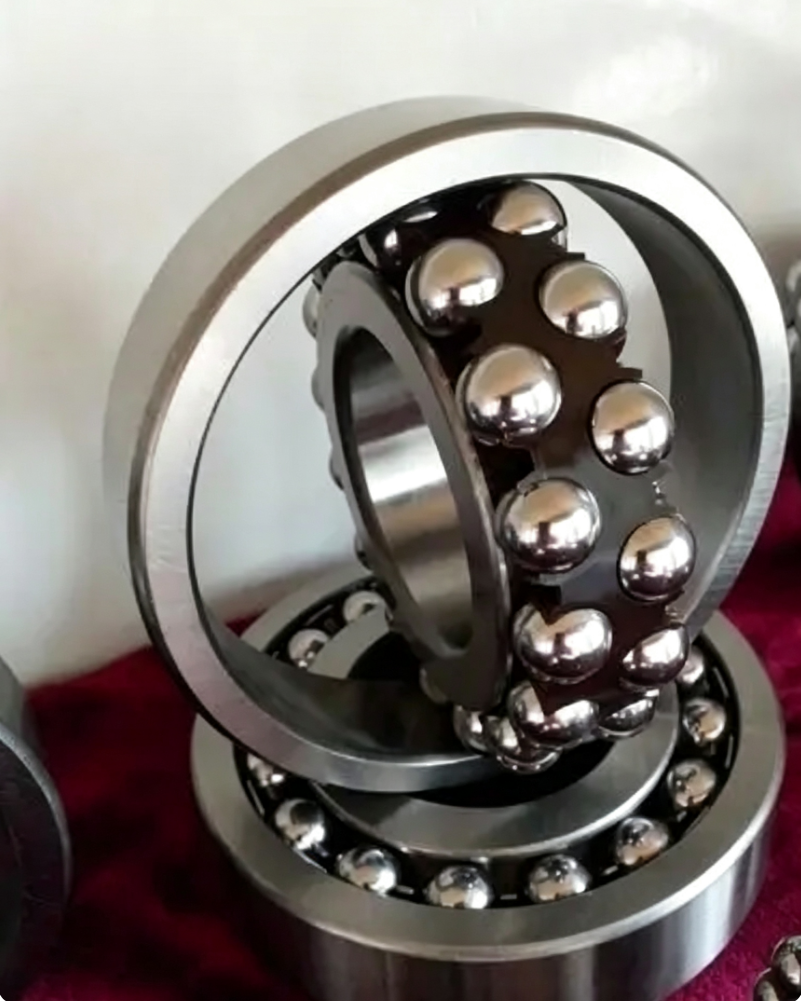

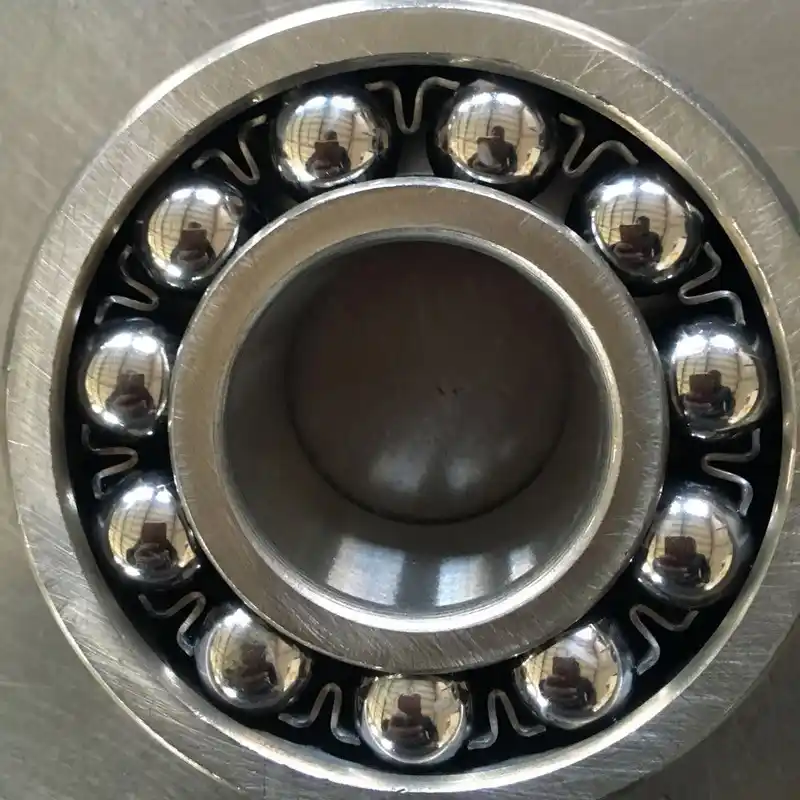

Self-Aligning Ball Bearings

I. Complete Part-Number Composition

Prefix code + basic designation + suffix code Format: 1 + dimension series + bore code + suffix code Examples: 1206, 1307K, 2208-2RS, 1210ATN

II. Basic Designation (Core)

1. Type Code

1 = Double-row self-aligning ball bearing (most commonly used)

2. Two-digit Dimension Series

Self-aligning ball bearings are mainly divided into light-series and medium-series. Prefix digits distinguish width and outer-diameter dimensions:

12: Narrow light series (general-purpose, widest-range application)

13: Narrow medium series (larger outer diameter, higher load capacity)

22: Wide light series (increased width, better load-carrying capacity than Series 12)

23: Wide medium series (largest overall size, heavy-duty type)

3. Bore Code (rules consistent with general-purpose bearings)

Bore Code	Bore Diameter d (mm)
00	10
01	12
02	15
03	17
04 and above	Code × 5

III. Common Suffix Codes and Meanings

1. K: Tapered bore (1:12 taper; mounting with adapter sleeve or withdrawal sleeve; widely used for transmission shafts, agricultural machinery). Examples: 1207K, 1309K

2. 2RS / RS: Double-sided / single-sided rubber seal (dust-proof, grease-retaining, maintenance-free). Example: 2206-2RS

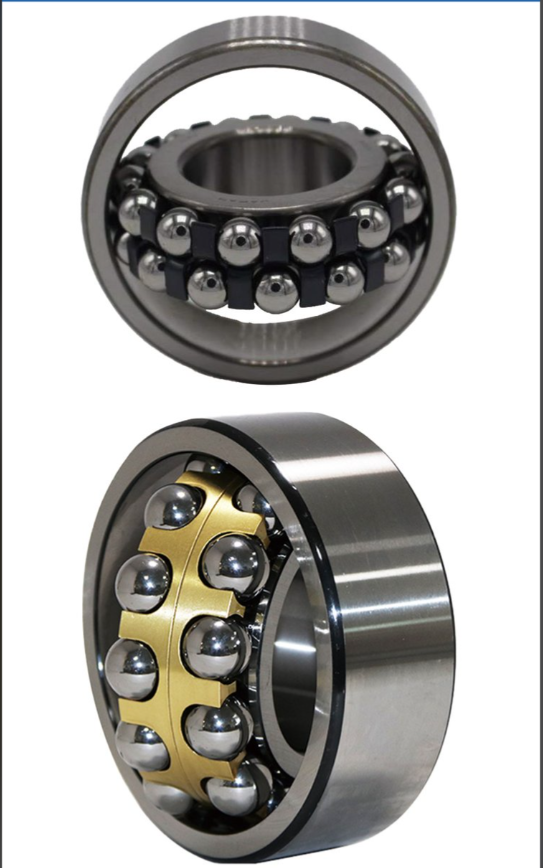

3. TN / ATN: Nylon / engineering-plastic cage; low-noise, high-speed capability

4. C3: Increased radial clearance; suitable for high-temperature and shock-load operating conditions

5. P0 / P6 / P5: Tolerance classes (P0 is default and omitted from marking)

Moodel	d(mm)	D(mm)	B(mm)	Cr(kN)	Cor(kN)	Grease (r/min)	Oil (r/min)	W(kg)
1200	10	30	9	5.48	1.20	24000	28000	0.035
1201	12	32	10	5.78	1.48	22000	26000	0.042
1202	15	35	11	7.00	2.05	18000	22000	0.051
1203	17	40	12	8.42	2.42	16000	20000	0.072
1204	20	47	14	9.95	3.25	14000	17000	0.110
1205	25	52	15	12.0	4.10	12000	15000	0.140
1206	30	62	16	15.8	5.80	10000	12000	0.220
1207	35	72	17	18.8	7.28	8500	10000	0.320
1300	10	35	11	7.22	1.62	20000	24000	0.060
1301	12	37	12	9.42	2.12	18000	22000	0.068
1302	15	42	13	11.5	2.88	16000	19000	0.095
1303	17	47	14	13.8	3.48	14000	17000	0.130
1304	20	52	15	16.8	4.40	12000	15000	0.170
1305	25	62	17	23.5	6.48	10000	13000	0.260
1306	30	72	19	29.5	8.72	8500	11000	0.390
2200	10	30	14	7.12	1.58	24000	28000	0.050
2201	12	32	14	7.88	1.85	22000	26000	0.058
2202	15	35	14	8.80	2.20	18000	22000	0.068
2203	17	40	16	11.0	2.88	16000	20000	0.095
2204	20	47	18	14.2	3.92	14000	17000	0.150
2205	25	52	18	16.8	4.80	12000	15000	0.180
2206	30	62	20	21.5	6.72	10000	12000	0.270
2207	35	72	23	27.2	8.92	8500	10000	0.420
2304	20	52	21	19.2	4.88	11000	14000	0.220
2305	25	62	24	26.2	6.95	9500	12000	0.350
2306	30	72	27	32.8	9.55	8000	10000	0.500
